The Para-PM

A new solution
to clean outdoor air

animation-parapm-en

DEPOLLUTION

An innovative, patented and scientifically validated solution for outdoor air pollution control. Highly efficient, it eliminates 95% of particulate matter PM10 and PM2.5.

A Para-PM module sucks in, treats and releases 3,600 m3 per hour, equivalent in volume to 1.5 Olympic swimming pools.

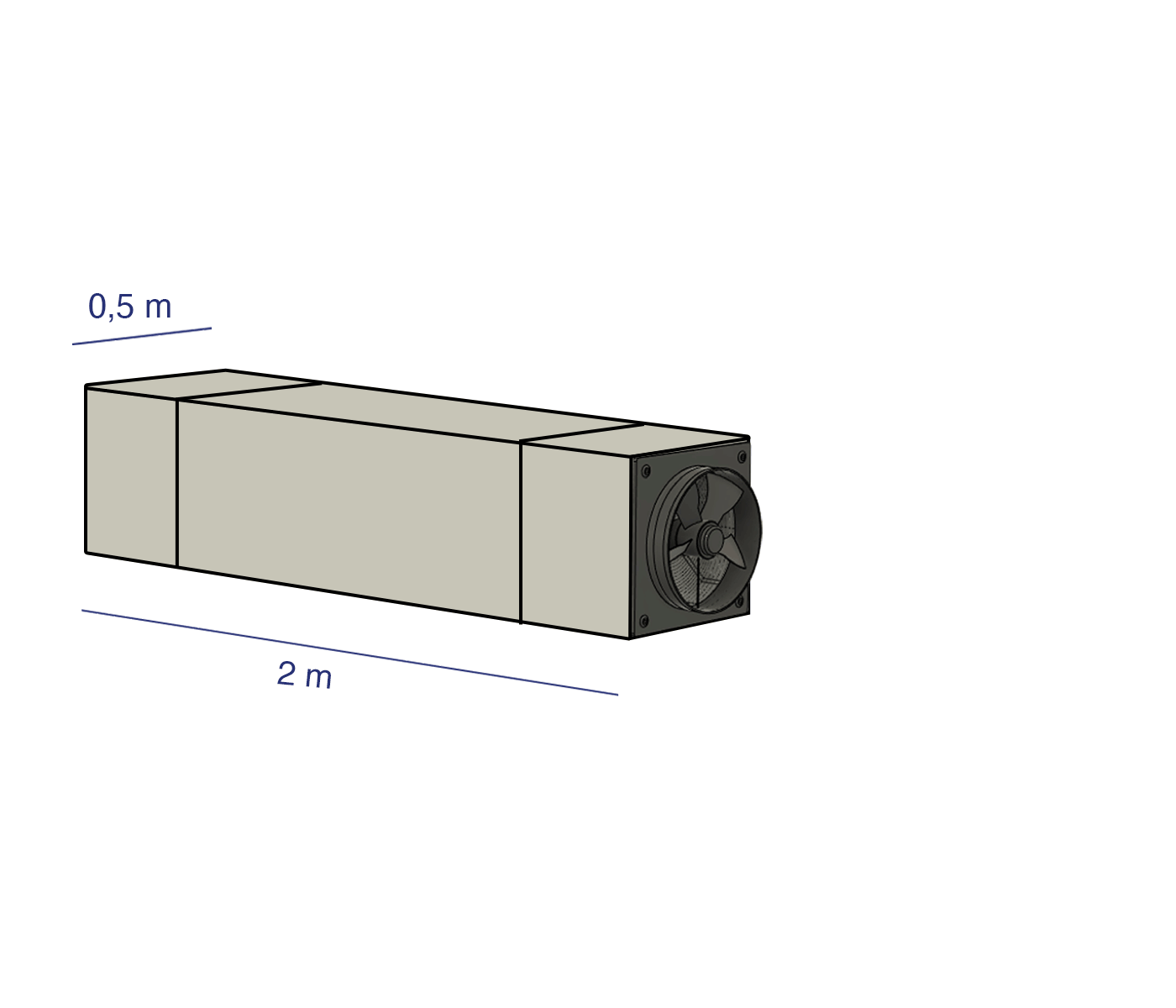

Module dimension : 210 x 60 x 70 cm

ENTIRELY MODULAR

The Para-PM can be adapted to any space and installed at the desired height for optimal efficiency.

The Para-PM is the ideal solution to clean up all types of public sites exposed to air pollution:

  • City centers
  • Subways
  • Construction sites
  • Tunnels
  • Underground parkings
  • Schools and nurseries
  • Hospitals and nursing homes
  • Sports facilities
  • Urban squares



Our current projects

Energy efficient

Only 280 W per Para-PM module.

Low maintenance

Bi-annual cleaning of the collector.
Less than 60 kg and 60 dB

procede-parapm_EN

PROCESS

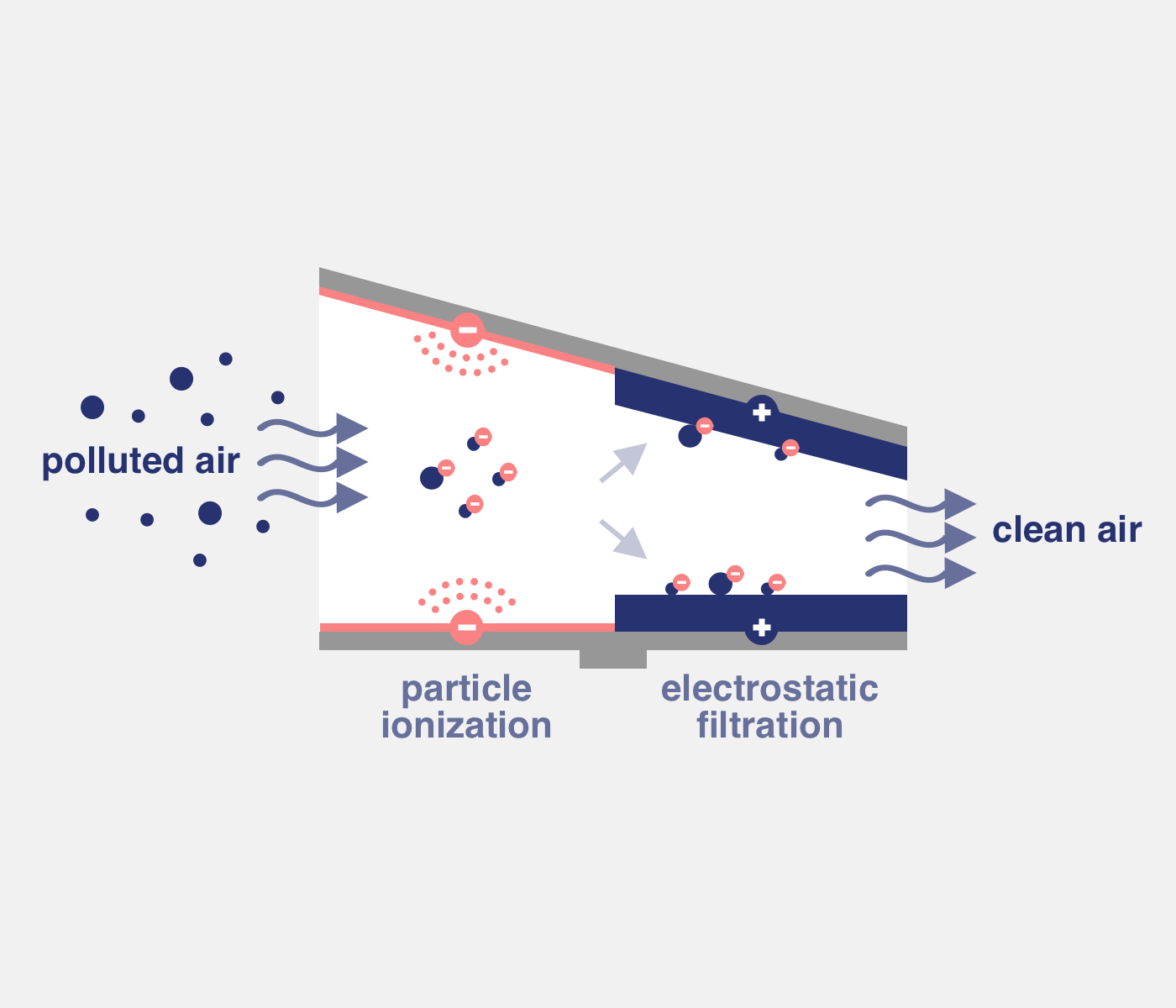

The Para-PM is based on a patented electrostatic ionization and filtration process.







TECHNOLOGY

A unique French technology, based on 10 years of research and experimentation at the Ballon Generali in Paris. It has been validated by two independent measurement systems (an optical counter and a condensation nuclei counter) and multiphysics numerical simulation models.

graphique-on-off_EN

95% OF THE MASS OF PM10 AND PM2.5 PARTICLES IS TRAPPED

including the smallest particles, which are dominant and extremely dangerous for health

Outdoor tests carried out in a Paris schoolyard showed PM2.5 capture efficiency of 95%. Similarly, tests on a 200 m3 room confirmed a PM2.5 capture efficiency of over 90%.

Mathematical adjustment of the PM2.5 concentration during a pollution control test of a closed room – Pollutrack and Tera

courbe-clo-v2

  • 15°C – 61% humidité
  • Pollution à l’encens
